Squire Pipe Series(2)
Current：Home/Industrial Profile/General Engineering/Squire Pipe Series(2)

Squire Pipe Series(2)

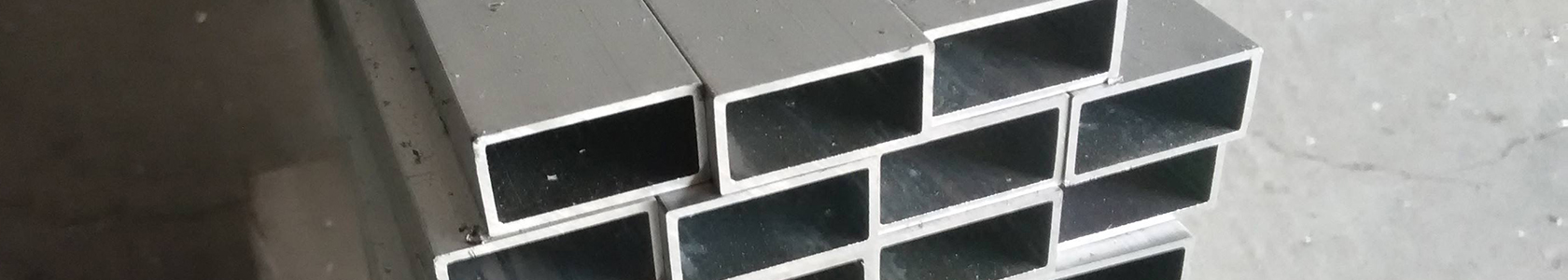

Square Pipe Series（Square And Rectangle）
Mould No. A(mm) B(mm) Wall Thickness
(mm)		 Line Density
（Kg/m）		 Extrusion
Capacity		 R Angle
CHALCO_A000534 40.00 40.00 2.50 1.003  880T  Have
CHALCO_A000552 40.00 40.00 2.00 0.800  880T  Have
CHALCO_AOOO351 40 40 2.5 1.013  880T  　
CHALCO_AOOO357 40 40 2.5 1.003  880T  Have
TF-176 40 40 2 0.793 　 R
TF-176 40 40 1.4 0.584  880T  　
TF-187 40 40 1.2 0.503 660T 　
CHALCOGYC-1774 12 40 1.5 0.381 660T R3.0
QL-858 20 40 1.5 0.462 660T 　
QL-878 15 40 1.5 0.421 660T 　
CHALCOGYC-1011 11 42 1.2 0.328 660 Have
TF-16 25 42.6 1.00/1.20 　 　 　
CCNZ-41 25 43 2 0.692 880 Have
CCNZ-49 40 43 2 0.853 880 　
LYL-116 20 44 2 0.611 880T R5.0
LNJH-08 40 44 2 0.868 880T Have
CHALCOGYC-915 44 44 3 1.328 1250T 　
FG-01 38.1 44.45 3.18 1.306  880T  Have
CHALCO_D001237 38.1 44.45 1.78 0.757 　 　
CHALCO_D000050 44.45 44.45 3.05 1.362 　 　
CHALCO_D002020 44.45 44.45 3.18 1.417 1250T 　
CHALCO_DOO0050 44.45 44.45 3.05 1.362 　 　
CHALCO_DOO2020 44.45 44.45 3.18 1.416 　 　
CHALCO_A001119 20 45 2.0 0.659  880T  　
CHALCO_A000584 25 45 2 0.713 　 　
CHALCO_AOOO584 25 45 2 0.713  880T  　
TF-129 25 45 0.80/1.17 　 　 　
CHALCO_A000985 33 45 2.5 0.949 880T 　
CHALCO_A000360 45 45 2.00/ 0.929 　 　
CHALCO_AOOO360 45 45 2 0.929  880T  　
CHALCOGYC-1300 16 46 2.5 0.749 880 Have
TF-185 20 46 2.5 0.824  880T  　
CHALCOGYC-863 20 46 3 0.972  880T  　
DLQT-10 48 48 1.3 0.656  880T  　
LNJH-02 40 49 2 0.922 880T Have
CHALCOGYC-1617 20 50 2 0.713 880T 　
TF-197 8 50 2 0.581  880T  Have
ALS_D000385 10 50 1.15 0.353 660T R1.5
TF-104 10 50 1.00/ 　 　 　
CHALCO_A000667 15 50 2 0.659  880T  　
CHALCO_A000272 20.00 50.00 2.00 0.713 880T 　
CHALCO_A000641 20 50 3 1.037  880T  　
CHALCO_A000843 20 50 3.0 0.543 660T 　
CHALCO_AOOO272 20 50 2.0 0.713 　 　
TF-186 20 50 1.2 0.428 660T Have
XSS-409 20 50 1 0.36 660T Have Angle R,
But wall thickness
minus tolerance
ALD_D000409 25 50 1.6 0.615  880T  Have
ALD_D000572 25 50 3 1.097 1250T Have
CHALCO_A000273 25 50 2 0.767  880T  　
CHALCO_A000541 25 50 3 1.118 1250T 　
CHALCO_AOOO273 25 50 2.0 0.767 　 　
CHALCO_AOOO541 25 50 3.0 1.118 　 　
TF-123 25 50 2.00/ 　 　 　
TF-96 25 50 1.20/ 　 　 　
LXC-00-704 30 50 3.0 1.197 1250 Have
CHALCO_A000274 30 50 3 1.199 1250T 　
CHALCO_A000368 30 50 2.0 0.821 　 　
CHALCO_A000878 30 50 2.5 1.013  880T  　
CHALCO_A000965 30 50 3 1.178 1250T Have
CHALCO_AOOO274 30 50 3.0 1.199 　 　
CHALCO_AOOO368 30.00 50.00 2.00 0.821  880T  　
TF-127 30 50 1.90/1.4 　 　 　
CHALCOXC-61 32 50 4 1.598 1250T 　
CHALCO_A001223 34 50 3 1.264 1250T 　
CHALCO_A000916 35 50 2.4 1.002  880T  Have
CHALCO_A000986 38 50 5 2.069 1250T Have
TF-56 38 50 1.10/1.40 　 　 　
ALD_D000423 40 50 3 1.34 1250T Have
LXC-00-703 40 50 3.0 1.359 1250 Have
CHALCO_A000369 40 50 3.0 1.361 　 　
CHALCO_A000369 40 50 3 1.361 1250T 　
CHALCO_A000370 40 50 4 1.771 1250T 　
CHALCO_A000544 40 50 2 0.929  880T  　
CHALCO_A001122 40 50 2.5 1.148 1250T 　
CHALCO_AOOO369 40 50 3.0 1.361 　 　
CHALCO_AOOO370 40 50 4.0 1.771 　 　
CHALCO_AOOO544 40 50 2.0 0.929 　 　
CHALCO_A000450 45 50 3 1.442 1250T 　
CHALCO_AOOO450 45 50 3.0 1.442 　 　
8M9T-XC-XJ-007 50 50 5 2.393 2000T Have
ALD_D000399 50 50 2.5 1.283 1250T 　
ALD_D000411 50 50 1.6 0.794  880T  Have
ALD_D000412 50 50 2 0.99 1250T Have
ALD_D003988 50 50 2 1.018 1250 OutsideR3
insideR1.0
ALD_D000612 50 50 1.8 0.89  880T  Have
ALD_D000820 50 50 1.9 0.938  880T  Have
LXC-00-707 50 50 3.0 1.523 1250 Have
LXC-00-709 50 50 3.0 1.521 1250 Have
CHALCO_A000051 50 50 3 1.523 1250T 　
CHALCO_A000352 50 50 4.00/ 1.987 　 　
CHALCO_A000358 50 50 2.00/ 1.037 　 　
CHALCO_A001049 50 50 3.2 1.617 1250T 　
CHALCO_AOOO352 50 50 4 1.987 1250T 　
CHALCO_AOOO358 50 50 2 1.037  880T  　
STX1093-501 50.00 50.00 5.00 2.430 2000T Have
TF-167 50 50 1 0.529 　 　
TF-39 50 50 1.20/1.25/1.30/1.40/1.45
/1.50/2.00/2.55/3.00		 　 　 　
ALD_D003985 50 50 3 1.502 1250 OutsideR3.0
insideR0
CHALCOGYC-1881 50 50 3.5 1.757 1250T R0.5
CHALCOGYC-1882 50 50 5 2.429  2000T  R0.5
XSS-409 20 50 1.0 0.36 660T R2.0
CHD_A000295 50 50 5 2.43 1800T 　
CHALCO_D040126 25.40 50.80 1.00 0.401 660T 　
CHALCO_D040141 12.7 50.8 1.5 0.49 660T Have
CHALCO_D000434 25.4 50.8 3.18 1.197 1250T 　
CHALCO_D002102 25.4 50.8 2.29 0.868  880T  Have
CHALCO_D002106 25.4 50.8 1.45 0.573  880T  Have
CHALCO_D004391 25.4 50.8 3.3 1.192  880T  Have
CHALCO_D004775 25.4 50.8 1.4 0.546 　 　
CHALCO_D004976 25.4 50.8 3.05 1.154 1250T Have
CHALCO_A000698 25.4 50.8 3.25 1.224 1250T 　
TF-04 25.4 50.8 0.90/1.00/1.10
/1.20/1.30/1.40		 　 　 　
CHALCO_D001532 38.1 50.8 3.18 1.413 　 　
CHALCO_D020031 38.1 50.8 3.3 1.467 1250 　
ALD_D000413 50.8 50.8 3.18 1.589 1250T Have
ALD_D000514 50.8 50.8 1.85 0.932 1250T Have
ALD_D000573 50.8 50.8 2 1.008 1250T Have
ALD_D000574 50.8 50.8 3.2 1.598 1250T Have
ALD_D001137  50.8 50.8 1.8 0.908  880T  Have
CHALCO_D000051 50.8 50.8 3.05 1.57 　 　
CHALCO_D000238 50.8 50.8 3.18 1.631 　 　
CHALCO_D000239 50.8 50.8 4.78 2.374 　 　
CHALCO_D000240 50.8 50.8 6.35 3.047 2000T 　
CHALCO_D000692 50.80 50.80 3.18 1.609 　 　
CHALCO_D000697 50.80 50.80 2.54 1.312 　 　
CHALCO_D000823 50.8 50.8 6.35 3.047 1250T Have
CHALCO_D003105 50.8 50.8 4.78 2.374 1250T Have
CHALCO_D008682 50.8 50.8 4.29 1.998 1250T Have
CHALCO_DOOO238 50.8 50.8 3.18 1.631 　 　
CHALCO_DOOO239 50.8 50.8 4.78 2.374 　 　
CHALCO_DOOO240 50.8 50.8 6.35 3.047 2000T 　
CHALCO_DOOO968 50.8 50.8 6.1 2.943 2000T 　
CHALCO_DOOOO51 50.8 50.8 3.05 1.57 　 　
CHALCO_A000699 50.8 50.8 3.25 1.67 1250T 　
CHALCO_A000908 50.8 50.8 1.63 0.863  880T  　
TF-105 35 55 2.00/ 　 　 　
CHALCOGYC-1131B 40.00 55.00 3.0 1.442 1250 　
CHALCO_A000460 55 55 2 1.145 1250T 　
TF-103 39 59 1.40/ 　 　 　
CCNZ-68 10.2 60 2 0.715 880T 　
CHALCO_A000371 20.00 60.00 2.00 0.821  880T  　
TF-161 20 60 1.2 0.503 　 　
CCNZ-64 20.2 60 2 0.823 880 　
CHALCO_A000366 25 60 2.0 0.875 　 　
CHALCO_A000834 25 60 3 1.28 1250T 　
CHALCO_AOOO366 25 60 2.0 0.875 　 　
CHALCO_A000372 30 60 3 1.361 1250T 　
CHALCO_A000543 30.00 60.00 2.00 0.929  880T  　
CHALCO_AOOO372 30 60 3.0 1.361 　 　
CHALCO_AOOO543 30 60 2.0 0.929 　 　
TF-95 30 60 1.20/ 　 　 　
CHALCO_A000105 40 60 2.5 1.283 1250T 　
CHALCO_A000275 40 60 4 1.987 1250T 　
CHALCO_A000373 40 60 3 1.523 1250T 　
CHALCO_A000384 40.00 60.00 2.00 1.037  880T  　
CHALCO_A000535 40 60 2.5 1.273 1250T Have
CHALCO_A000806 40 60 2.0 1.028  880T  Have
CHALCO_AOOO105 40 60 2.5 1.283 　 　
CHALCO_AOOO275 40 60 4.0 1.987 　 　
CHALCO_AOOO373 40 60 3.0 1.523 　 　
CHALCO_AOOO384 40 60 2.0 1.037 　 　
SWTJ-008 40 60 3 1.523 1250T 　
TF-73 40 60 1.40/ 　 　 　
ALD_D003987 40.00 60.00 2.00 1.018 1250 OutsideR3.0
insideR1.0
LXC-00-701 50 60 3.0 1.683 1250 Have
CHALCO_A000721 50 60 3 1.685 1250T 　
CHALCO_A000922 50 60 4 2.203 1250T 　
STX1093-603 50 60 5 2.691 2750T Have
CHALCO_A000109 60 60 4 2.419 1800 　
CHALCO_A000353 60 60 3.00/ 1.847 　 　
CHALCO_A000531 60 60 2 1.253 1250T 　
CHALCO_A001103 60 60 2 1.253 1250T 　
CHALCO_AOOO353 60 60 3 1.847 1800 　
TF-72 60 60 1.40/2.50 　 　 　
TF-94 60 60 1.20/ 　 　 　
TF-216 40 60 2.0 0.993 1250 　
JT-518525 18 60 2.5 0.986 880T 　
TF-88 40.4 60.6 2.70/ 　 　 　
CHALCOGYC-836 40 61.2 3 1.542 1250T 　
CHALCO_D004687 25.4 63.5 1.4 0.641 　 　
CHALCO_D000114 38.1 63.5 1.57 0.836 　 　
CHALCO_D000115 38.1 63.5 1.47 0.784 　 　
CHALCO_D004327 38.1 63.5 1.52 0.811 　 　
CHALCO_D004690 38.1 63.5 1.52 0.802 　 　
CHALCO_D004977 38.1 63.5 3.05 1.572 1250T 　
CHALCO_D005614 38.1 63.5 3.175 1.633 1250T 　
CHALCO_D000241 63.5 63.5 6.35 3.918 2000T 　
CHALCO_D004584 63.5 63.5 6.1 3.779 2000T 　
CHALCO_D009479 63.5 63.5 3.17 2.069 1800T 　
CHALCO_DOO0241 63.5 63.5 6.35 3.918 2000T 　
CHALCO_DOO4584 63.5 63.5 6.1 3.778 2000T 　
TF-37 25 64 0.80/0.90/1.00/1.10
/1.20/1.30		 　 　 　
TF-59 44 64 1.00/1.10/1.20 　 　 　
ALD_D000534 16 65 1.40 0.576  880T  Have
ALS_D000386 16 65 1.15 0.473 880T R3.0
TF-45 65 65 1.40/ 　 　 　
KLYL-W204-43826 29.4 65.4 4.5 2.066 1800 Have
TF-13 25.4 67 0.85/0.90/1.00/1.10
/1.15/1.20
/1.25/1.30/1.40/1.50		 　 　 　
TF-182 44.5 67 2.5 1.428 1250T Have
TF-23 44.5 67 1.00/1.20/1.50/2.00 　 　 　
TF-24 67 67 1.10/1.20/1.50 　 　 　
TF-102 43 69 1.40/ 　 　 　
CHALCO_D010667 35 70 2 1.082 1250T R2.0
CHALCO_A000606 20 70 2 0.929 1250T 　
BJKJY-HL05 30 70 1.2 0.632 880T 　
CHALCO_A001118 30 70 3 1.523 1250T 　
CHALCO_A000262 40 70 3 1.685 1250T 　
CHALCO_AOOO262 40 70 3.0 1.685 　 　
TF-202 50 70 1.5 0.948 1250 　
TF-69 50 70 3.00/ 　 　 　
TF-214 50 70 2.5 1.509 1250T Have
CHALCO_A000448 70 70 4 2.851 1800 　
CHALCO_A000719 70 70 2 1.469 1250T 　
CHALCOGYC-1883 70 70 8 5.356 3150T R0.5
TP-1278B 25 70.5 1.2 0.603 880T 　
TF-28 25 73 1.20/1.40/1.60 　 　 　
TF-26 25.4 73 1.00/1.15/1.20/1.30
/1.35/1.40		 　 　 　
TF-160 22 75 1.2 0.613 　 　
ALD_D003941 25 75 2 1.037 880 Have
TF-124 50 75 2.00/ 　 　 　
TF-86 20 76 0.80/0.85 　 　 　
TF-27 25 76 0.90/1.00/1.20/2.0 　 　 　
ALD_D002752 76 76 6.2 4.303 2000T Have
TF-19 76 76 1.20/1.50 　 　 　
CHALCO_D001530 25.4 76.2 3.18 1.631 　 　
CHALCO_D004774 25.4 76.2 1.4 0.734 　 　
CHALCO_D006186 25.4 76.2 3.18 1.61 1250T Have
CHALCO_D006992 25.4 76.2 3.175 1.633 1250T Have
CHALCO_D010461 25.4 76.2 2.6 1.352 1250T Have
CHALCO_A001458 25.4 76.2 3.25 1.67 1250T 　
TF-05 25.4 76.2 0.80/0.90/0.98/1.00/1.10
/1.20/1.40/1.50/3.00		 　 　 　
TF-06 25.4 76.2 1.4/ 　 　 　
CHALCO_D002318 38.1 76.2 3.18 1.851 1250T 　
CHALCO_D002340 38.1 76.2 3.05 1.781 1250T Have
CHALCO_D004691 38.1 76.2 1.57 0.94 1250T Have
CHALCO_D004975 38.1 76.2 1.57 0.945 1250T Have
CHALCO_D004979 38.1 76.2 3.05 1.781 1250T Have
CHALCO_D006307 38.1 76.2 3.05 1.781 1250T Have
TF-07 38.1 76.2 1.00/1.20 　 　 　
CHALCO_D004515 44.45 76.2 3.05 1.885 　 　
TF-08 44.5 76.2 0.80/0.90/0.98/1.00/1.02/
1.10/1.18/1.20/1.22/
1.40/1.50/1.60/1.80/1.90
/2.00/2.25/2.50/3.00		 　 　 　
ALD_D001142 50.8 76.2 3.18 2.072 1800 　
CHALCO_D000052 50.8 76.2 3.2 2.069 1250T 　
CHALCO_D002395 50.8 76.2 6.35 3.919 2000T 　
CHALCO_D004919 50.8 76.2 3.18 2.069 1250T Have
CHALCO_A000700 50.8 76.2 3.25 2.116 1250T 　
CHALCO_A001082 50.8 76.2 4.06 2.609 1800 　
CHALCO_A001342 50.8 76.2 4.76 2.931 1800 Have
CHALCO_D000242 76.2 76.2 3.18 2.504 2000T 　
CHALCO_D000243 76.2 76.2 4.78 3.683 2000T 　
CHALCO_D000244 76.2 76.2 6.35 4.788 2000T 　
CHALCO_D000969 76.2 76.2 6.1 4.614 2000T 　
CHALCO_D002749 76.2 76.2 6.35 4.65 2000T Have
CHALCO_D002823 76.2 76.2 6.35 4.603 2000T Have
CHALCO_D003108 76.2 76.2 4.78 3.684 2000T Have
CHALCO_D004660 76.2 76.2 2.08 1.737 1250T Have
CHALCO_D005242 76.2 76.2 2.29 1.898 1250T Have
CHALCO_D008546 76.2 76.2 2.36 1.884 1250T 　
CHALCO_D008679 76.2 76.2 4.76 3.593 2750T Have
CHALCO_D008680 76.2 76.2 6.35 4.659 2750T Have
CHALCO_DOO0242 76.2 76.2 3.18 2.502 2000T 　
CHALCO_DOO0243 76.2 76.2 4.78 3.683 2000T 　
CHALCO_DOO0244 76.2 76.2 6.35 4.788 2000T 　
CHALCO_DOO0969 76.2 76.2 6.1 4.614 2000T 　
CHALCO_A000701 76.2 76.2 3.25 2.561 1250T 　
CHALCO_A001347 76.2 76.2 1.5 1.174 1250T Have
CHALCO_D030030 76.2 76.2 2.29 1.825 1250T 　
CHALCO_D040196 38.1 76.2 1.5 0.902 880 　
BJZX-18 50.8 76.2 4.8 3.019 2000T R3.2
TF-84 20 77.2 1.20/ 　 　 　
TF-43 25 78.5 1.10/1.20/ 　 　 　
TF-46 25 79.4 0.90/0.95/1.00/1.15
/1.20/1.40		 　 　 　
CHD_A000209 20 80 1.5 0.786 880T 　
TF-77 10 80 0.90/ 　 　 　
CHALCO_A000376 20 80 2 1.037 1250T 　
CHALCO_AOOO376 20 80 2.0 1.037 　 　
CHD_A000209 20.00 80.00 1.50 0.786 660T 　
CHALCO_A000668 25 80 2 1.091 1250T 　
CHALCO_A000549 30 80 2 1.145 1250T 　
CHALCO_A000604 30 80 3 1.685 1250T 　
CHALCO_AOOO549 30 80 2.0 1.145 　 　
LXC-00-710 31 80 4 2.223 2000T Have
CHALCO_A000263 40 80 3 1.847 1250T 　
CHALCO_A000276 40 80 2 1.253 1250T 　
CHALCO_A000277 40 80 4 2.419 1250T 　
CHALCO_AOOO263 40 80 3.0 1.847 　 　
CHALCO_AOOO276 40 80 2.0 1.253 　 　
CHALCO_AOOO277 40 80 4.0 2.419 　 　
CHD_D000122 40 80 2.5 1.553 1250 　
TF-53 44 80 1.20/1.40 　 　 　
CHALCO_A000374 50 80 4 2.635 1250T 　
CHALCO_A000742 50 80 3 2.009 1250T 　
CHALCO_A001307 50 80 2 1.361 1250T 　
CHALCO_AOOO374 50 80 4.0 2.635 1250T 　
CHALCO_A000383 60 80 4 2.851 1250T 　
CHALCO_A000386 60 80 3 2.171 1250T 　
CHALCO_AOOO383 60 80 4.0 2.851 1250T 　
CHALCO_AOOO386 60 80 3.0 2.171 　 　
TF-89 60 80 1.90/ 　 　 　

Industrial Profile



Contact us


Company : Henan Chalco Aluminium

Tel : 86 17344894490

Fax : 86 17344894490

Mobile : 86 17344894490

Email : business@chalcoaluminum.com

Skype : chalcoaluminum



Business License（营业执照）
